1．Preparation

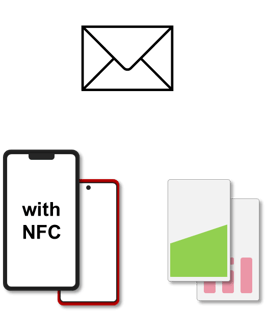

A）Prepare the password notification email and the IC card/NFC compatible smartphone to be registered in advance.
- The password notification email contains the following、
OPELO entranceRegistration password
OPELO initial unlock password
Authentication ID for Android smartphone - Up to 300 IC cards and smartphones can be registered.
- ISO14443A (My Fair) / ISO18092 (Felica) can be used for a wide range of purposes such as transportation cards and employee ID cards.
- When using an Android smartphone, only devices with NFC/Osaifu-Keitai can be registered with OPELO.
- When using an iPhone, only terminals that have registered the Suica app or Apple pay can be registered with OPELO.
- When registering, please remove the IC card/smartphone from its case or cover.
- Some IC cards/smartphones cannot be used, so please actually register with OPELO and check the operation before using.
1．

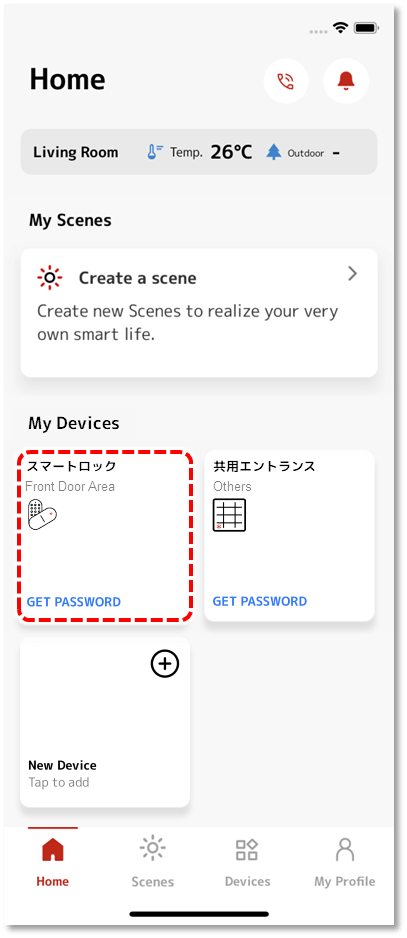

From the home screen of the HOMETACT app, tap OPELO.
2．

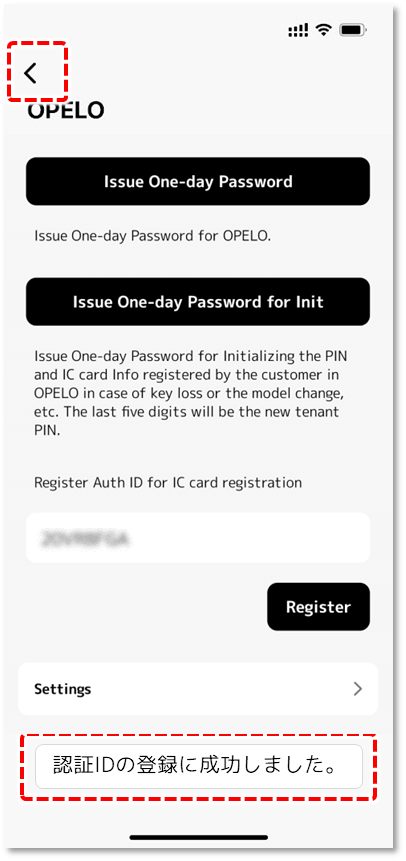

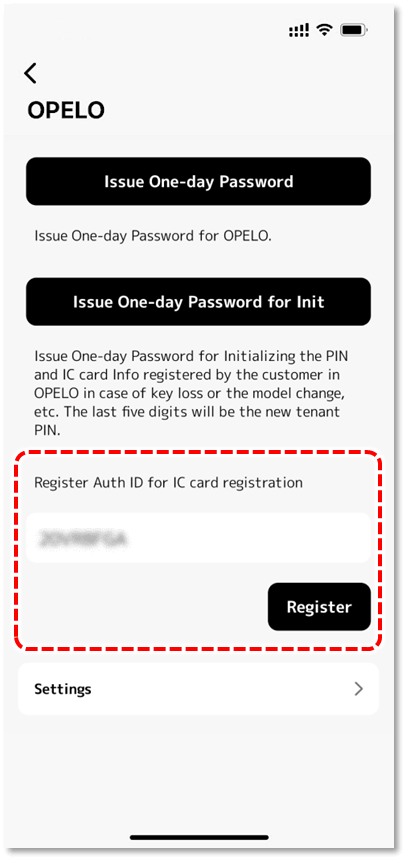

An invitation email has been sent to the email address you registered when you moved in. Enter her Android smartphone authentication ID described in the email and tap "Register".
3．
When the registration success message is displayed, tap "<" to return to the home screen.
1．

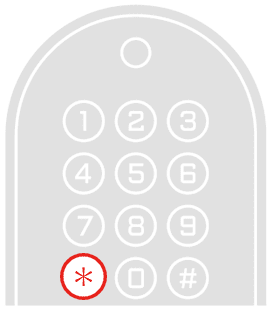

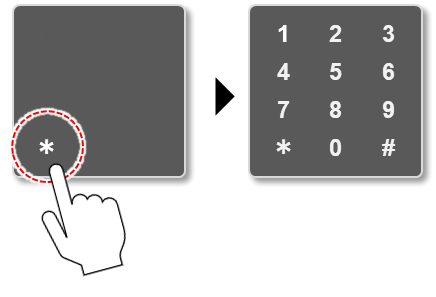

Press the "＊" to display the numeric keypad.
2．

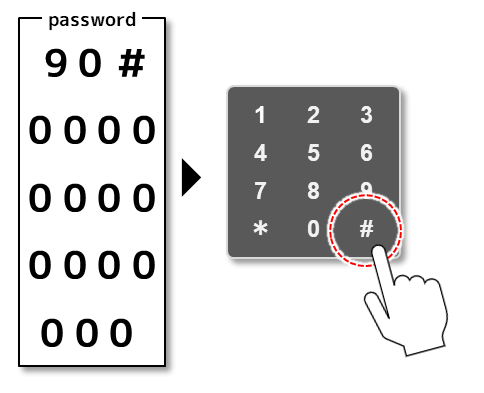

Enter the OPELO entrance registration password and press "#" at the end.
If you hear "♪beep" (two short beeps), your password has been successfully authenticated.
If you hear "♪beep-beep-beep" (long three times), the authentication has failed. Start again from 1.
3．

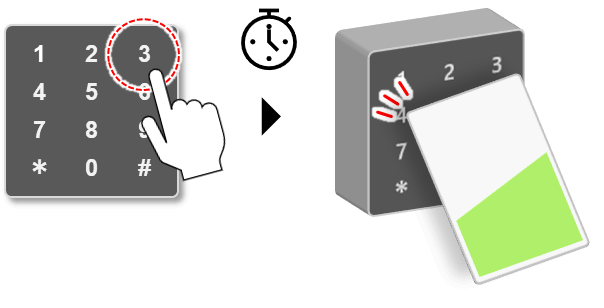

Press the number below and hold the device to be registered within 5 seconds.
IC card/iPhone ・・・ 3
Android ・・・ 1
If you hear "♪ Beep", the registration is successful.
If you hear "Piroro ↓", the registration has failed. Start again from 1.
4．
If you want to continue registering other devices, repeat step 3.
5．
Hold the registered device over it and check if it can be unlocked.
1．

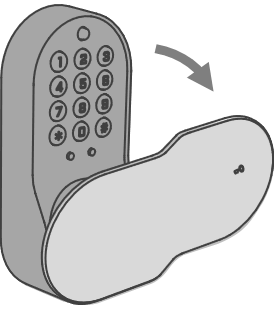

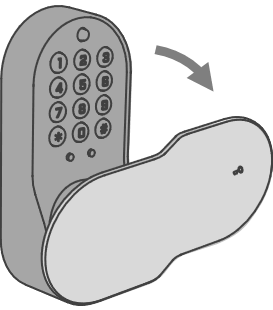

Slide the cover.
2．
Enter the OPELO initial unlock password written in the password notification email.
If you hear three long ♪beeps, the password you entered is incorrect. Please try again.
1．Change Password

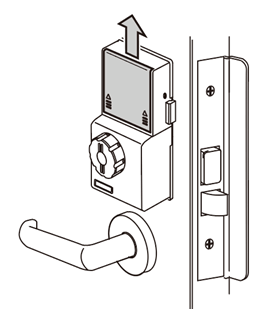

Slide the power supply unit cover on the upper part of the room side up to remove it.
2．

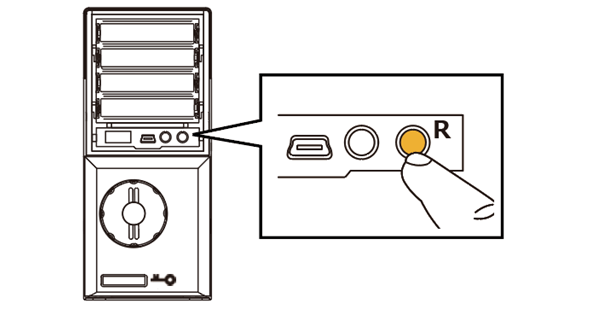

Press the "R" button on the bottom right of the power supply unit once.
3．

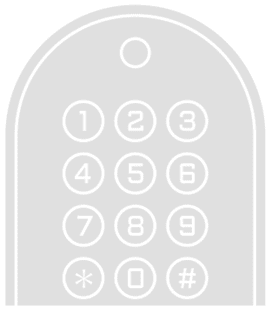

Enter the current unlock password using the numeric keypad.
When changing for the first time after moving in, please enter the last 5 digits of the initial unlock password.
4．

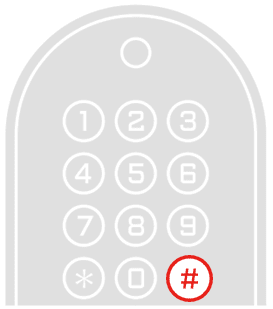

Press "#" once.
If you hear three long "♪ beep beep" sounds, the password you entered is incorrect. 2. Start over.
5．
Enter the new password, being careful not to make any mistakes.
6．
Press "#" once to register a new password.
7．Confirm unlock
Press "＊" once.
8．
Enter your new password.
9．
If you press "#" once, "♪ Beep Beep" will sound three times and the door will be unlocked.
1．
Slide the power supply unit cover on the upper part of the room side up to remove it.
2．Overwrite registration

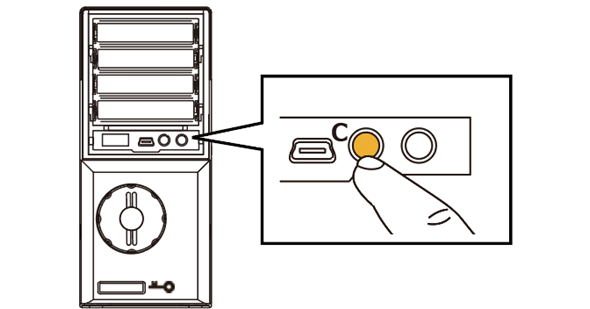

Press the "C" button on the bottom right of the power supply unit once.
3．
slide the cover
4．
Enter the unlock password using the numeric keypad.
5．
Press "#" once.
If you hear three long "♪ beep beep" sounds, the password you entered is incorrect. 2. Start over.
6．

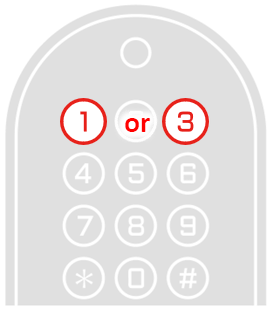

Press "1" or "3" depending on the type of key to be registered.
1: IC card / iPhone
3:Android
7．

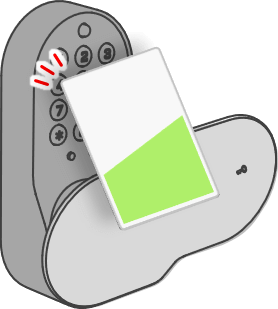

Hold the key you want to register over the numeric keypad within 5 seconds.
Registration is successful if you hear "♪ Piro" or "♪ Peep".
If you hear "♪beep" twice long, the registration has failed. Please start again from 2.
If you want to continue registering other devices, repeat from 6.
8．
Press the "C" button on the lower right of the power supply unit once to complete the registration.
Even if you leave it for 5 seconds, the registration will be completed automatically.
9．
Return the cover.
10．Confirm unlock

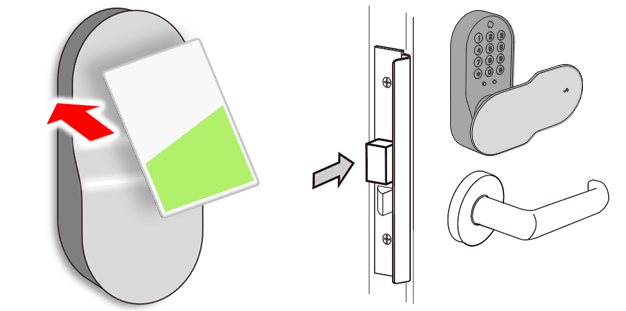

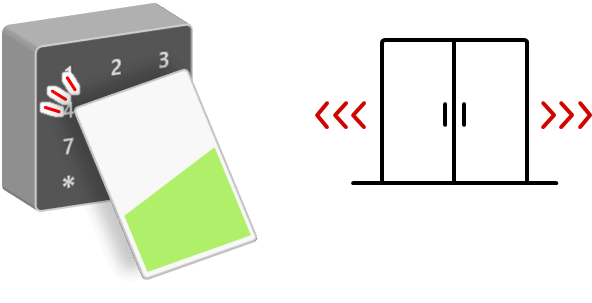

With the door open to prevent it from being locked out, push your card/smartphone over the numeric keypad cover until you hear a beep.
The door will be unlocked with three short sounds of "♪ Beep Beep".
If you hear "♪beep beep beep", the key registration has failed. 2. Start over.
6．Add key to OPELO
1．
Slide the power supply unit cover on the upper part of the room side up to remove it.
2．Additional registration
Press the "C" button on the bottom right of the power supply unit once.
3．
slide the cover
4．

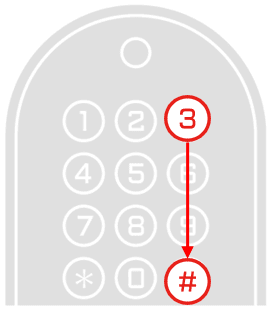

Press "3" and "#".
５．
Enter the unlock password using the numeric keypad.
６．
Press "#" once.
If you hear three long "♪ beep beep" sounds, the password you entered is incorrect. 2. Start over.
７．
Press "1" or "3" depending on the type of key to be registered.
1: IC card / iPhone
3:Android
８．
Hold the key you want to register over the numeric keypad within 5 seconds.
Registration is successful if you hear "♪ Piro" or "♪ Peep".
If you hear "♪beep" twice long, the registration has failed. Please start again from 2.
If you want to continue registering other devices, repeat from 7.
9．
Press the "C" button on the lower right of the power supply unit once to complete the registration.
Even if you leave it for 5 seconds, the registration will be completed automatically.
10．
Return the cover.
11．Confirm unlock
With the door open to prevent it from being locked out, push your card/smartphone over the numeric keypad cover until you hear a beep.
The door will be unlocked with three short sounds of "♪ Beep Beep".
If you hear "♪beep beep beep", the key registration has failed. 2. Start over.
